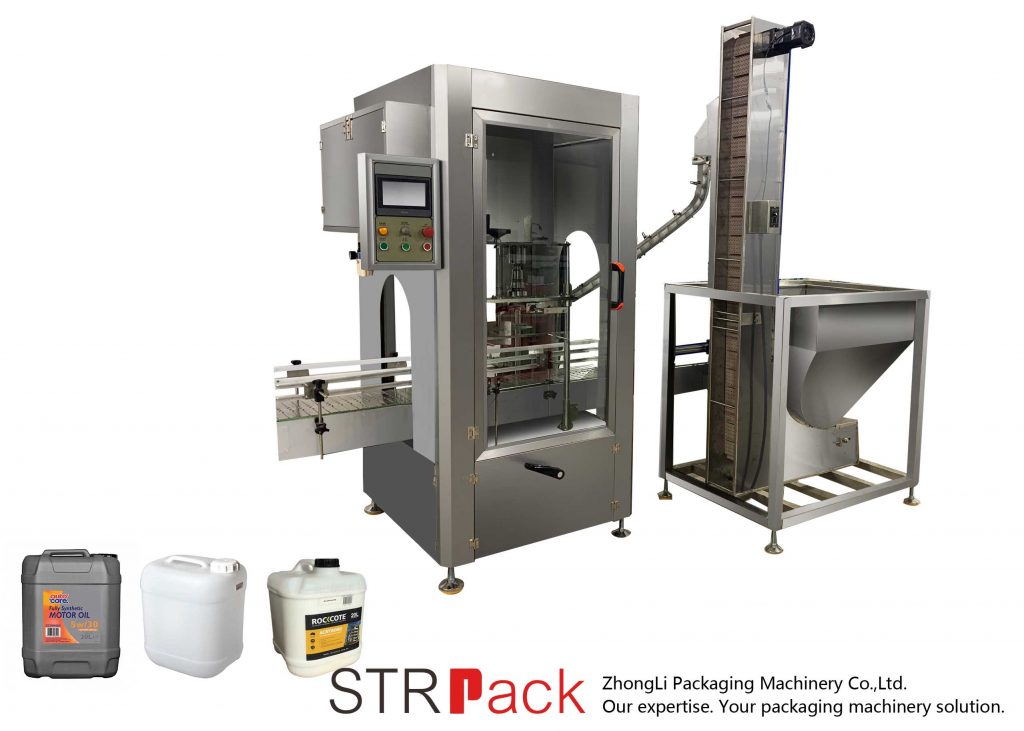

Plastic Jerry Can Capping Machine
Plastic Jerry Can Capping Machine
Brief Introduction:
This capping machine is suitable for capping 5-25L Plastic jerry cans with plastic screw caps.
PLC control system, linear type structure, the machine is with function of automatic cap feeding ,loading and closing.
Double air cylinders for container positioning.
Pneumatic chuck capping head with clutch to assure cap effect.
It is an idea machine for capping big size containers.
Main Parameter:
| No. | Model | SFX-1 |
| 1 | Speed | ≤750pcs/Hour |
| 2 | Container Diameter | ≤320(L)×220(W)mm |
| 3 | Container Height | 250-450mm |
| 4 | Cap Diameter | ≤Φ75mm |
| 5 | Air Pressure | 0.6-0.8Mpa |
| 6 | Power | 2Kw |
| 7 | Voltage | 220V/ 380V,50Hz/60Hz |
| 8 | Weight | 400Kgs |
| 9 | Dimension | 2000*1030*2100mm |
