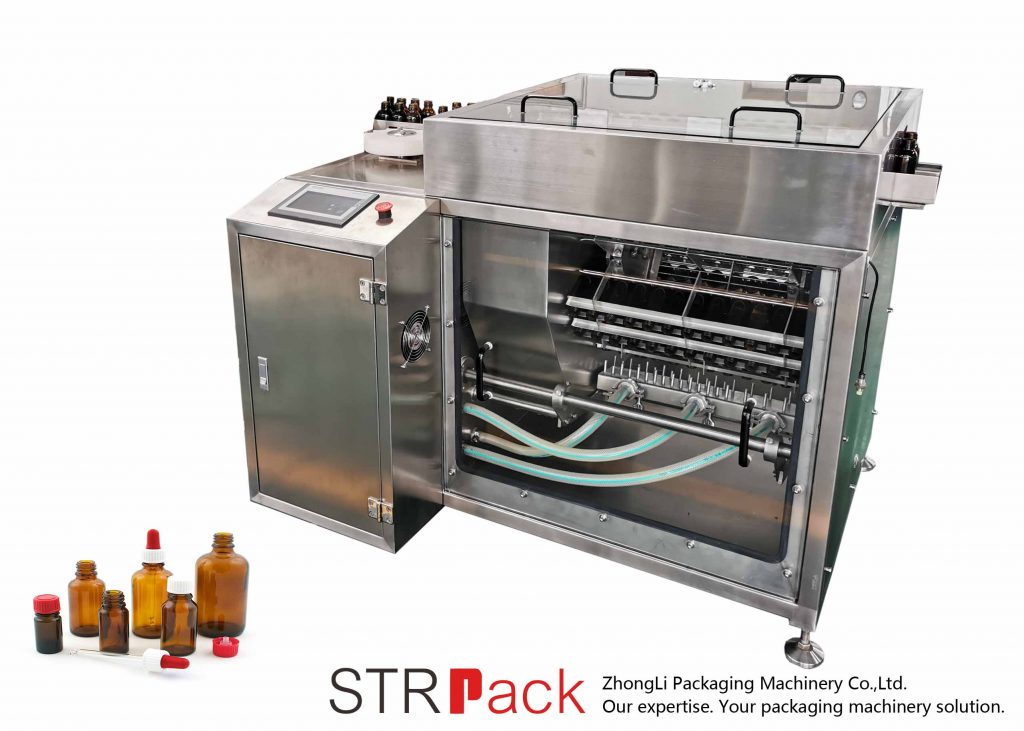

Bottle Rinsing Machine
Bottle Rinsing Machine
Bottle Rinsing Machine is mainly used for clean the inside and outside of various material round bottle with filling range of 30-500ml by “two water and one gas” (water, ionized water, oil free compressed air) alternately washing. So that make sure the bottles meets requirements of production process, and it has function of initial drying the bottles.
PLC control system, color touch screen display.
Unique and compact structure, reasonable cleaning process.
Bottle spotlessness after washing, less water consumption.
Main electrical elements adopts foreign well-known brand.
Machine body is made by 304 stainless steel, completely meets GMP requirements.
Parameter:
| Applicable specification | 10-500ml |
| Washing speed | 40-100 bottles/min |
| Air supply | 15m³/h, 0.6-0.8Mpa |
Power supply | 220V/380V, 50/60Hz |
| Power | 1.3 KW |
| Circulating water | 0.5-1m³/h |
| Net weight | 500kg |
| Overall dimension | L1500 × W850 × H1300mm |
