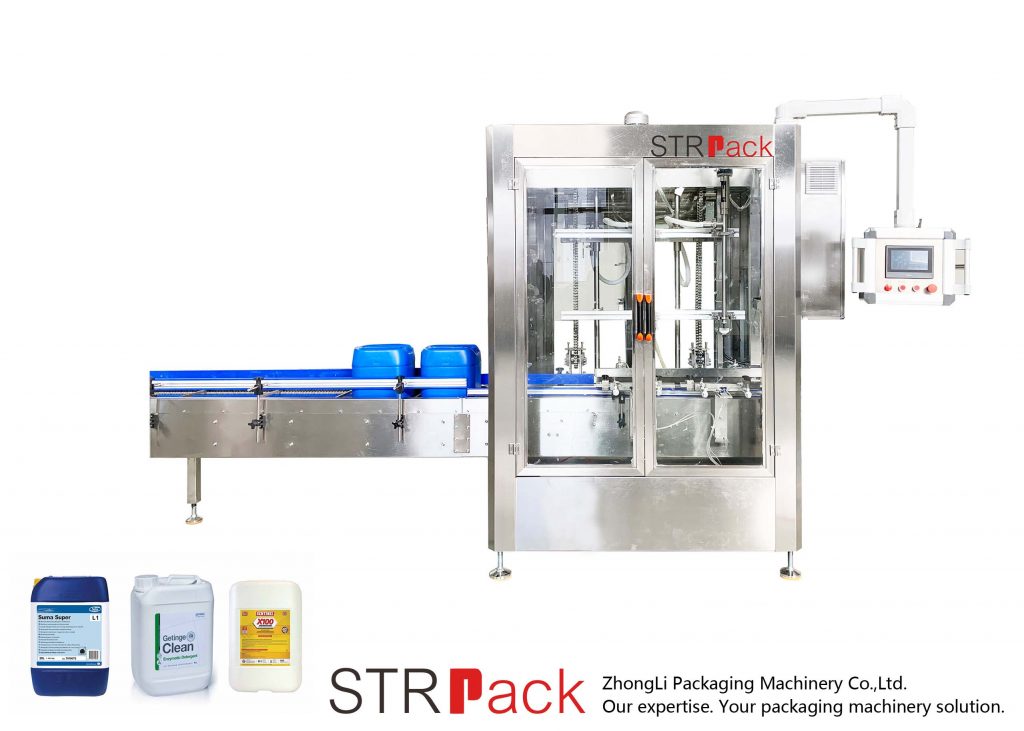

Automatic Net Weigh Filling Machine
Automatic Net Weigh Filling Machine
Brief Introduction
This is weigh type filling machine for filling 5-30 KG Liquid . Gravity filling system with weight scale under filling nozzle to assure filling accuracy.
Linear type machine, can be made with 2/4/6/8 filling nozzle for different filling capacity.
It is a good machine for filling big volume product like edible oil, wine, lubrication, liquid fertilizer, chemicals etc.
Features:
◎Made by high quality 304 Stainless steel, it is durable.
◎316 stainless steel product contact parts is available for optional according to product features.
◎Liquid receive tray is available in case any dripping from filling nozzle.
◎Diving filling head is available for filling foamy liquid.
◎No bottle no fill.
◎Controlled by PLC and operation through touch screen.
◎Easy change over to different size bottles.
◎Quick-install connecting parts , it is easy to disassemble and clear machine.
Main Parameter:
| Model | Unit | STRFW | |||
| Nozzle Number | PCS | 2 | 4 | 6 | 8 |
| Filling volume | Ml | 5-30KG | |||
| Production capacity | Bottle/h | 100-600pcs(Depends on filling volume) | |||
| Quantitative error | % | ≤±2% | |||
| Voltage | V | AC220V 380V ±10% | |||
| Consumed power | KW | 1.5 | 1.5 | 1.5 | 1.5 |
| Air Pressure | MPA | 0.6-0.8Mpa | |||
| Air consumption | M3/min | 0.8 | 1 | 1.2 | 1.2 |
