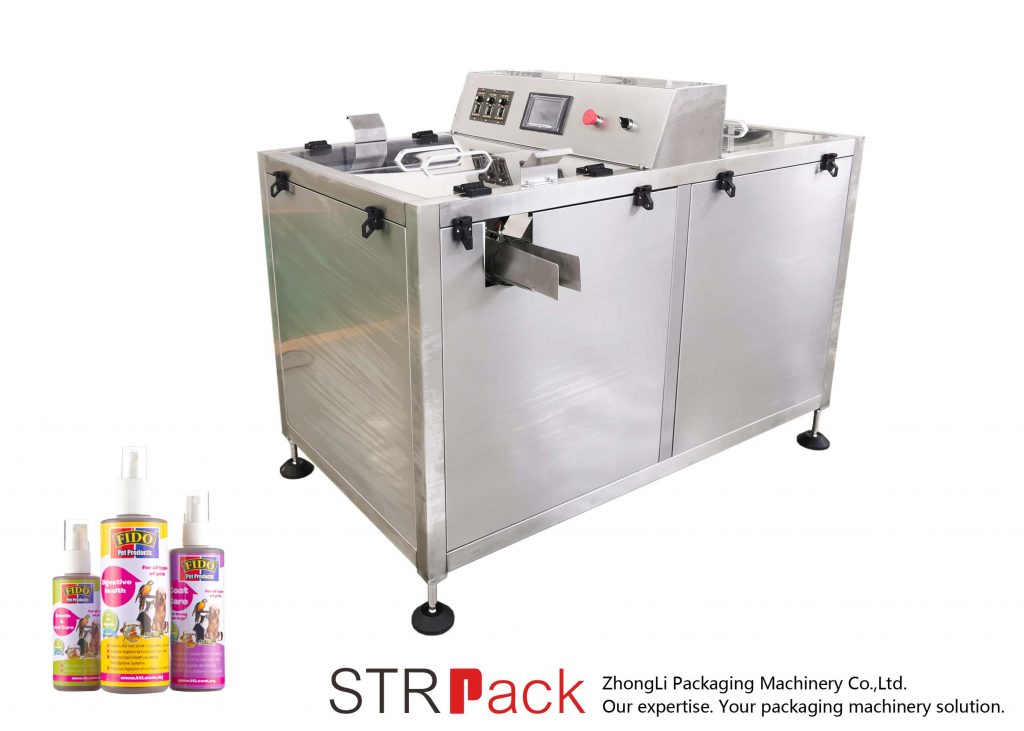

Bottle Unscrambler

Bottle Unscrambler

Bottle Unscrambler

Usable range:
Plastic round bottles, plastic square bottle, some plastic shaped bottles

Feature:
1. Rotating turntable is able to automatically organize plastic bottles, ordered onto the conveyor belt
2. Automatic detection the conveyor is unblocked or not, thereby controlling the turntable running or stop
3. Just with a different turntable, can settle different bottle sizes
4. Without blowing gas source, take advantage of automatic anti-bottle structure and with a collection bottle device, can significantly improve productivity.

Techincal Parameter

1Electric power0.8kw
2Bottle typeround, flat, square, long tube bottle
3Use Plastic Bottle Size:Bottle 20-80mm

bottle height :43-120mm

4Unscrambler pass rate≥ 99%
5Unscrambler speed20-60 bottles / min
6air pressure0.4-0 .6 mpa
7air consumption05m3 / h
8Power220v/ 50hz
9Weigh250kg
10Dimensions2000 * 1000 * 1200 mm
