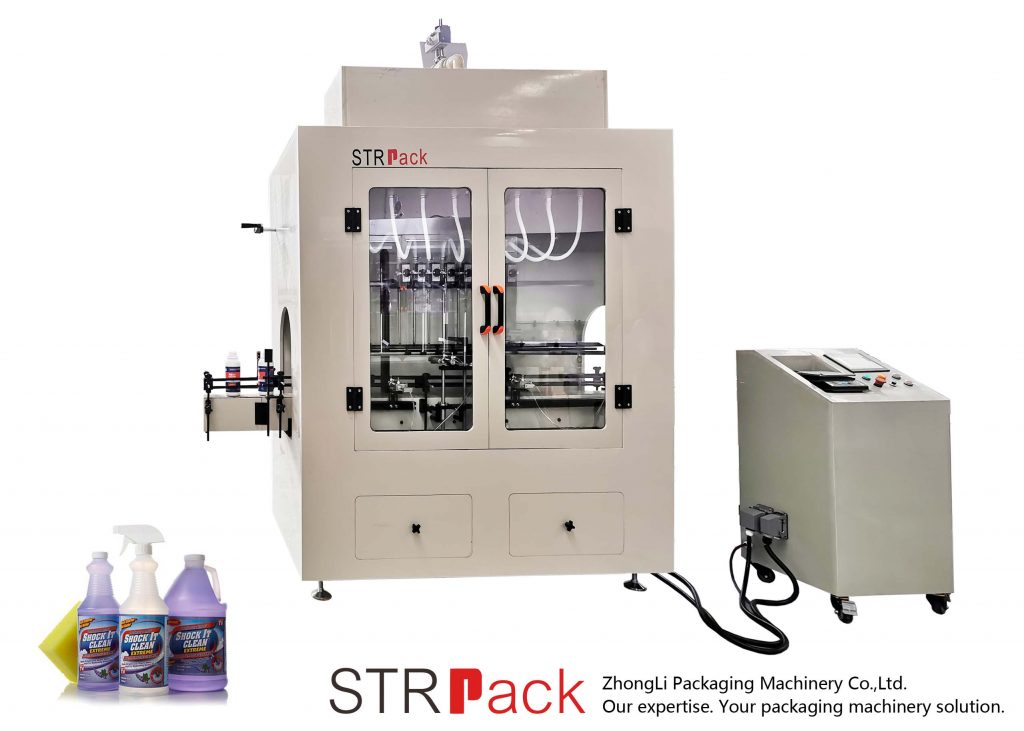

Corrosive Liquid Filling Machine
Brief Introduction
This gravity type filling machine is special made for filling corrosive liquid such as bleach, sulphuric acid, 84 disinfectant, gel water, toilet cleaner etc.
The machine is made by in-line structure , filling head quantity can be custom-made according to different production capacity such as 6/8/10/12/16 /20 heads.
The filling volume is controlled by filling time, with weight feedback of each filling nozzle to PLC to assure good filling accuracy.
All product contact parts is made with strong plastic material to avoid corrosion.
Features:
◎Heavy duty plastic construction for filling corrosive liquid
◎Filling range from 100-5000ml
◎Separate electric box away from filling area for better protection
◎Liquid receive tray is available in case any dripping from filling nozzle.
◎Angled filing nozzle for filling angled neck bottles(Optional Item)
◎No bottle no fill.
◎Controlled by PLC and operation through touch screen.
◎Easy change over to different size bottles.
◎Quick-install connecting parts , it is easy to disassemble and clear machine.
Main Parameter:
Model | Unit | STRFGC | |||
Nozzle Number | PCS | 6 | 8 | 10 | 12 |
Filling volume | Ml | 100-5000ml | |||
Production capacity | Bottle/h | 1000-3000pcs(Depends on filling volume) | |||
Quantitative error | % | 100-1000ml:≤±2% , 1000-5000ml:≤±1% | |||
Voltage | V | AC220V 380V ±10% | |||
Consumed power | KW | 1.5 | 1.5 | 1.5 | 1.5 |
Air pressure | MPA | 0.6-0.8Mpa | |||
Air consumption | M3/min | 0.8 | 1 | 1.2 | 1.2 |
