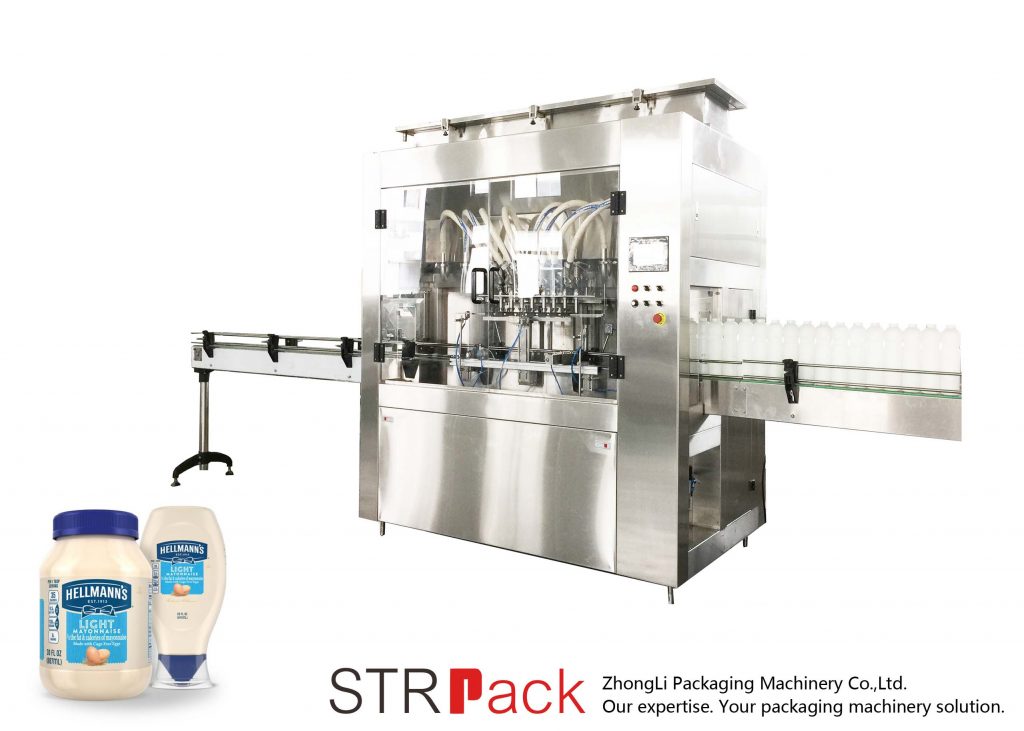

Rotor Pump Filling Machine
Brief Introduction:
This filling machine is rotor pump filling machine which is made for filling high viscious product and non-flowable paste such as mayonnaise, sealant ,grease etc.
The machine is made by in-line structure , filling head quantity can be custom-made according to different production capacity such as 2/4/6/8 heads.
The filling system is driven by servo motor which assure high filling accuracy ,also easy to set filling volume on the touch screen directly.
It is widely used in the cosmetic, foodstuff, specialty chemical, pharmaceutical, and personal care industries.
Features:
◎Made by high quality 304 Stainless steel, it is durable.
◎316 stainless steel product contact parts is available for optional according to product features.
◎Dosing system is driven by servo motor, it assure high filling accuracy.
◎Filling range can be 100-5000ml.
◎One nozzle with one rotor pump or two nozzle with one rotor pump depends on product viscous.
◎Air blow off filling nozzle is available for sticky product to avoid tail stringing on nozzle
◎No bottle no fill.
◎Controlled by PLC and operation through touch screen.
◎Easy change over of different size bottles.
◎Quick-install connecting parts , it is easy to disassemble and clear machine.
Main Parameter:
Model | Unit | STRFRP | |||
Nozzle Number | PCS | 2 | 4 | 6 | 8 |
Filling volume | Ml | 100-5000ml | |||
Production capacity | Bottle/h | 1000-2000 pcs/Hour ( Depends on Filling volume) | |||
Quantitative error | % | ≤±1% | |||
Voltage | V | 380V/220V, 50Hz/60Hz | |||
Power | KW | 2.5 | 4.5 | 5.5 | 7.5 |
Air Pressure | MPA | 0.6-0.8 | |||
Air consumption | M3/min | 0.8 | 1 | 1.2 | 1.2 |
